CONTROL PLATFORM FOR ADVANCED CELL CULTURE PROCESS
CYTOSYS BRIGHT
Fully designable solution.
Up to 90 inputs/outputs available. Up to 16 P.I.D. No matter the pump, no matter the sensors, no matter the actuators, the heating, the cooling, whatever you would need can be integrated to our Bright solution.
to design together your dreamed solution!
Fully designable
Data storage
Compact design
Ready to use
16 P.I.D.
Intuitive WLAN HMI
Control Platform for Advanced Cell Culture Process

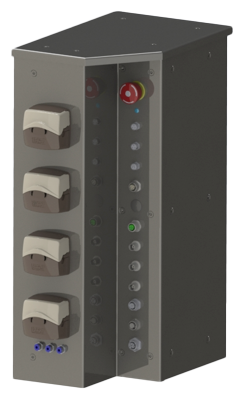

The CYTOSYS BRIGHT is our fully customizable solution.
Bright is also fully updatable. If you purchased a Bright system and you want to update it later, just give us a call. We can add regulation functionalities, new sensors, and new actuators.
Sensors, actuators, heating or cooling system, pumps, MODBUS probes, classic probes,…
No matter the demand, CYTOSYS BRIGHT can respond to it within a small footprint of 35(D) x 20(W) x 50(H)cm.
A POWER CONCENTRATE !
We can help you to define the best match between your needs and the latest technology.
Applications of our Control Platform
Adherent Cell Culture
Suspension Cell Culture
Yeast Fermentation
Bacteria Culture
Algae Culture
Technical Specifications
Bioreactor control unit | Vessel 0.5 - 50L | Glass, Stainless Steel or Disposable |
HMI | Web Interface (Local or LAN access) | |
Software | CFR 21 Part 11 Compatible | |
Dimensions (cm) | 38 x 75 x 24 (W x H x D) | |
Gaz station | Gaz | Up to 4 Gaz (Air, O2, CO2, N²) |
TMFC | Up to 8 TMFC (0-10L/min) | |
Electro-Valve | Up to 8 Electro-Valves | |
Agitation | Drive | Brushless Motor |
Agitation Range | 10 - 200 RPM or 50 - 1000RPM | |
Display Resolution | 1 RPM | |
Temperature | Probe | Up to 2 PT-100 |
Display Resolution | 0,1 °C | |
Temperature Range | Room Temperature to 50°C | |
pH | Sensor Technology | Up to 2 Gel Filled, Optical or Disposable |
Display Resolution | 0.01 | |
dO | Sensor Technology | Polarographic, Optical or Disposable |
Display Resolution | 0.1% | |
Pump | Peristaltic Pump | Up to 8 Pumps (0-300 RPM, precision 0,005 RPM) |
PID Controllers | Allowed PIDs | 16 |
Controlled Parameters | Sensors, Analog Inputs, Totalizers, PID Output for Cascade | |
Inputs/outputs | Total Number Available | 90 Inputs/Outputs User Available Analog Inputs 0 - 5/10 V, 0/4 - 20 mA Analog Outputs 0 - 5/10 V, 0/4 - 20 mA Digital Inputs (up to 80 VDC) Digital Outputs (5,24 and up to 80 VDC) Power Outputs (110 VAC or 230 VAC) Specific Inputs / Outputs on request |
